Pris er inkl. mva. Ca to ukers leveringstid. Metallsøker AS representerer Garrett i Norge. Ta kontakt for mer informasjon og pristilbud på PD 6500i eller andre Garrett metalldetektor portaler.

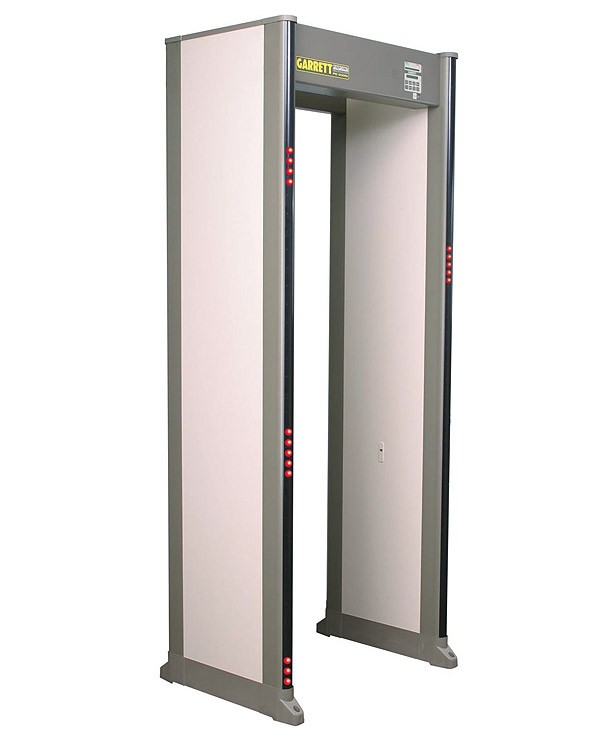

Garrett's Magnascan PD 6500i med 33 deteksjons-soner regnes som det ypperste av kvalitet innen metalldetektor portaler for sikkerhetskontroll av mennesker.
Denne metalldetektorportalen er designet for stor gjennomstrømning - samtidig som de høyeste internasjonale sikkerhetskravene/sertifikatene tilfredsstilles. PD 6500i er blant annet godkjent/sertifisert for bruk på Europeiske og Amerikanske flyplasser. Mye i bruk også på ambassader, i regjeringsbygg, rettsaler og andre steder som krever sikkerhetskontroll.
Har over 20 fabrikkinnstallerte programmer for forskjellige bruksområder.
Med sine 33 detekterings-soner har PD 6500i overlegne pinpoint (finlokaliserings) egenskaper som viser nøyaktig hvor på kroppen den har detektert et metallobjekt. Dette er også den eneste detektor portalen som er godkjent for amerikanske og europeiske flyplasser som sonelokaliserer flere metallobjekter samtidig, og som med lysdioder forteller operatøren hvilket soner (områder på kroppen) som må undersøkes nærmere.
PD 6500i har også diskriminering-egenskaper ingen annen portal kan matche. Takket være disse egenskapene som kan stilles inn etter eget diskriminerings-behov, kan man f.eks. velge å slippe gjennom nøkler og mynter uten at dette avgir signal.
PD 6500i metalldetektor portal er førstevalget for svært mange i sikkerhetskontroll bransjen - verden over.
Back-up batteri for bruk ved strømbrudd kan leveres. (tilbehør)
Garrett er en verdensledende og anerkjent merkevare på metalldetektor sikkerhetskontroll utstyr. Se også deres markedsledende håndholdte kropps-scannere.
Les mer om egenskaper og spesifikasjoner på engelsk under videoene.
Se også produktark for PD 6500i
- 33 pinpoint zones to precisely identify multiple target locations from head to toe on the left, center and right sides of the body.
- More than 20 standard programs for security application versatility.
- International security standards—The PD 6500i meets the world's highest test certifications, including the following international airports:
|
|
|
- Dual detection: with transmitters and receivers in each panel, the
PD 6500i is the equivalent of two detectors in one. By scanning from
both sides, the PD 6500i provides superior detection, uniformity and
performance.
- Advanced broadband detection technology provides superior target analysis, ferrous and non-ferrous weapons detection, discrimination and higher throughput.
- Directional counter with four settings for counting (forward, reverse, subtract in reverse, and bi-directional).
- Superior versatility: selectable settings designed for airports, courthouses, prisons, schools, facilities, special events, mass transit, loss prevention and many other applications.
- Networking ability: CMA provides networking, remote control, monitoring, data analysis and group management.
- Meets IP55 standards for moisture and foreign matte protection.
- Limited 24-month warranty: parts and labor.
- Pacing lights at the entrance display universal
"wait" and "proceed" symbols for traffic control.
|
Specifications
|
Temperatures
Operating: -4° F (-20° C) to +122° F (50° C)
Humidity to 95% non condensing
Storage: -40° F (-40° C) to 158° F (70° C)
Power
Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 45 watts; no rewiring, switching or adjustments needed.
Weatherproofing / Foreign Object Protection Standards
Meets IP 55, IEC Standard. "Degrees of Protection provided by Enclosures," IEC 529. *IP 65 optional.
Target Pinpointing Lights
Thirty-three (33) distinct zones are displayed with two (2) independent columns of LEDs located on exit side of PD 6500i.

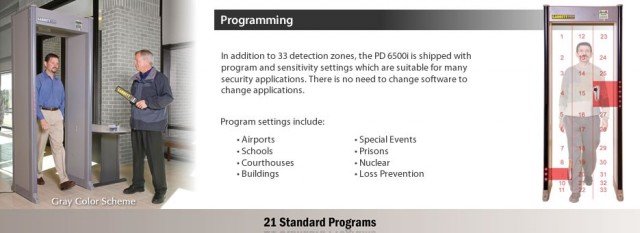

Programs
More than Twenty (20) independent programs designed to meet all installation specific requirements including ECAC requirements for European airports and TSA requirements for U.S. airports.

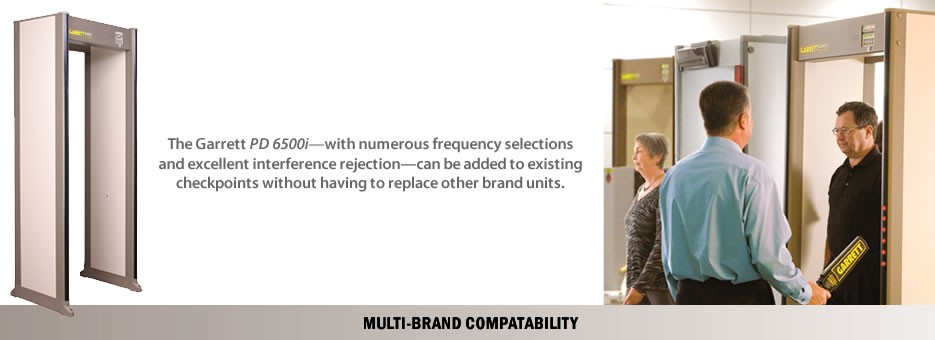

Multi-Unit and Multi-Brand Compatibility
2,300 selectable operating frequencies and multiple channels allow the PD 6500i to operate in close proximity to other PD 6500is as well as with non-Garrett walk-throughs.
Interference Suppression
Advanced analog and digital filtering—as well as adjustable operating frequencies—eliminate the potential effects from x-ray units, radios and other electrical interference sources.
Directional Counter
Counter tracks the number of patrons that have passed through the
detector, the direction of patrons, the number of alarms and calculates alarm percentage. Four directional count settings (forward, reverse, subtraction reverse and bi-directional).
Random Alarm Feature
Provides ability to randomly alarm on a selected percentage of non-alarming persons; adjustable from 0 to 50 percent.
Alarms
Audible tone and volume adjustable. Bright LED visual alarm.
Pacing Lights
International symbols located at entrance.
Tamper-Proof
All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.
Control Outputs
Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
Construction
Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.
Warranty
24 months, Limited parts and labor
|
Dimensions
| Passageway Interior Size |
|
Width 0.76 m
|
|
Height 2.03 m
|
|
Depth 0.58 m
|
| |
|
Overall Exterior Size
|
|
Width 0.90 m
|
|
Height 2.21 m
|
|
Depth 0.58 m
|
| |
|
Shipping Size
|
|
Width 0.90 m
|
|
Height 2.32 m
|
|
Depth 0.16 m
|
| |
|
Weight: 64 kg
|
|
Shipping Weight: 74 kg
|
